Shanghai Kymoon Rubber Co.,Ltd.
E-MAIL: mail@kcm-hk.com
| Quantity: | |
|---|---|

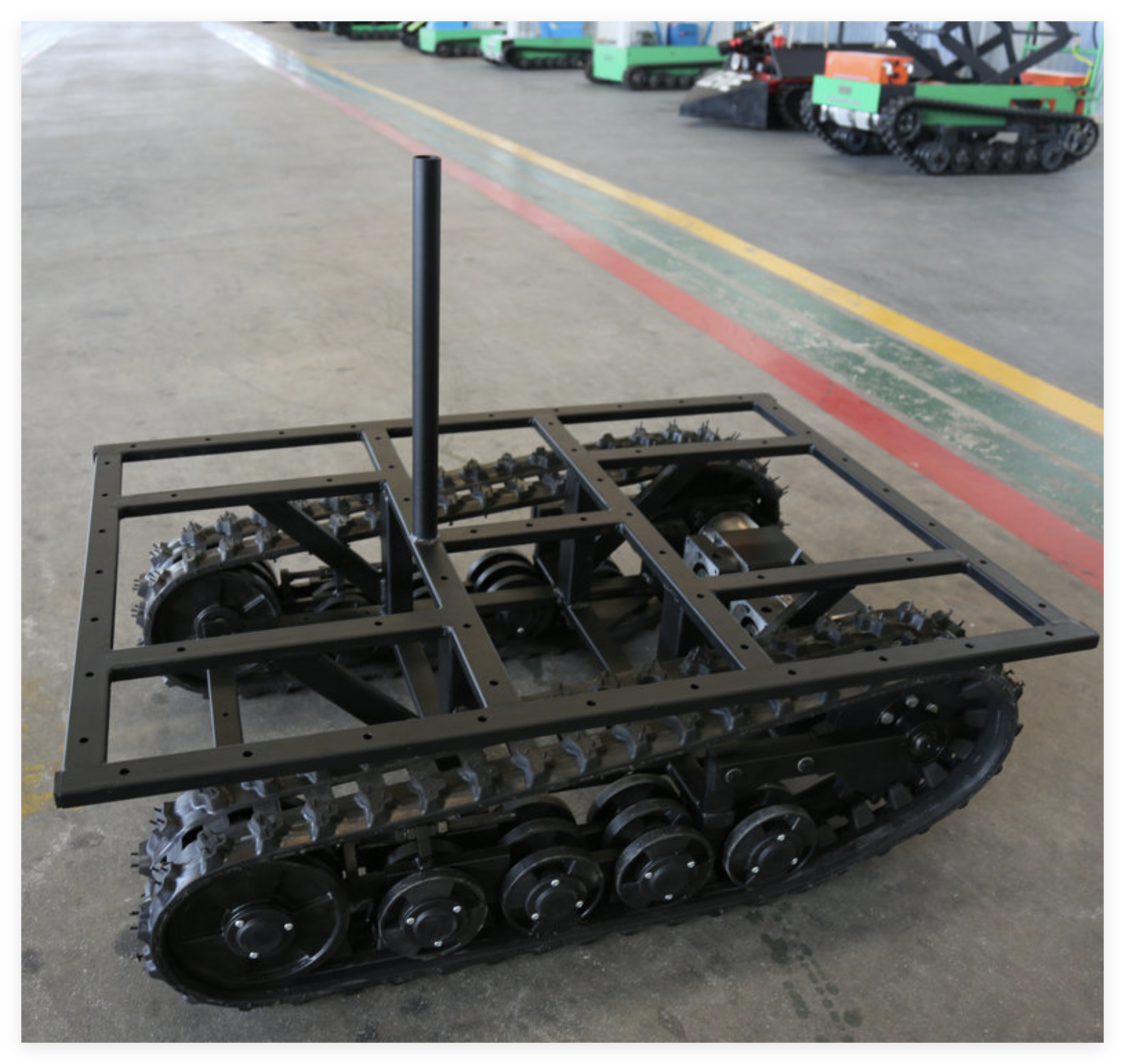

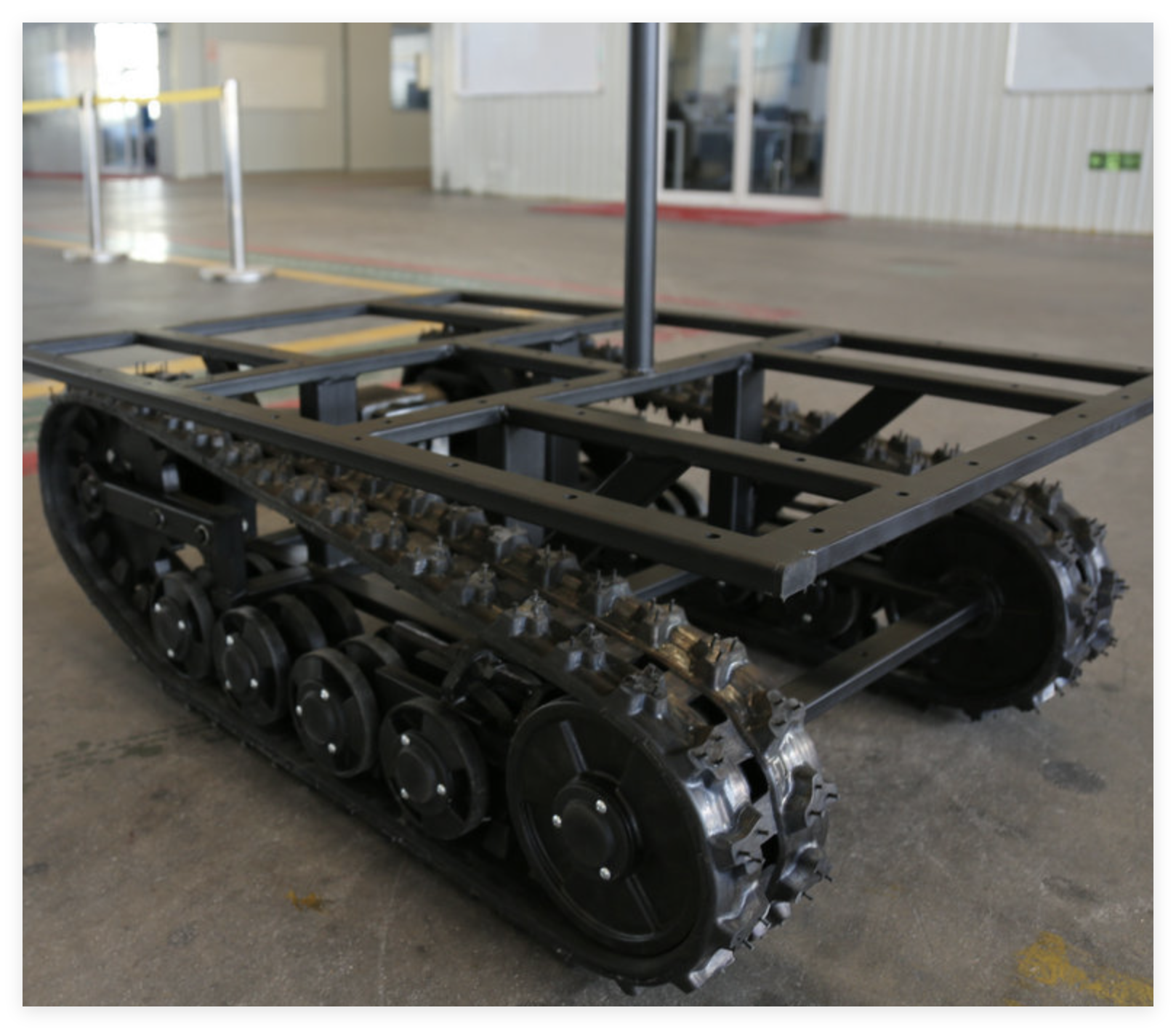

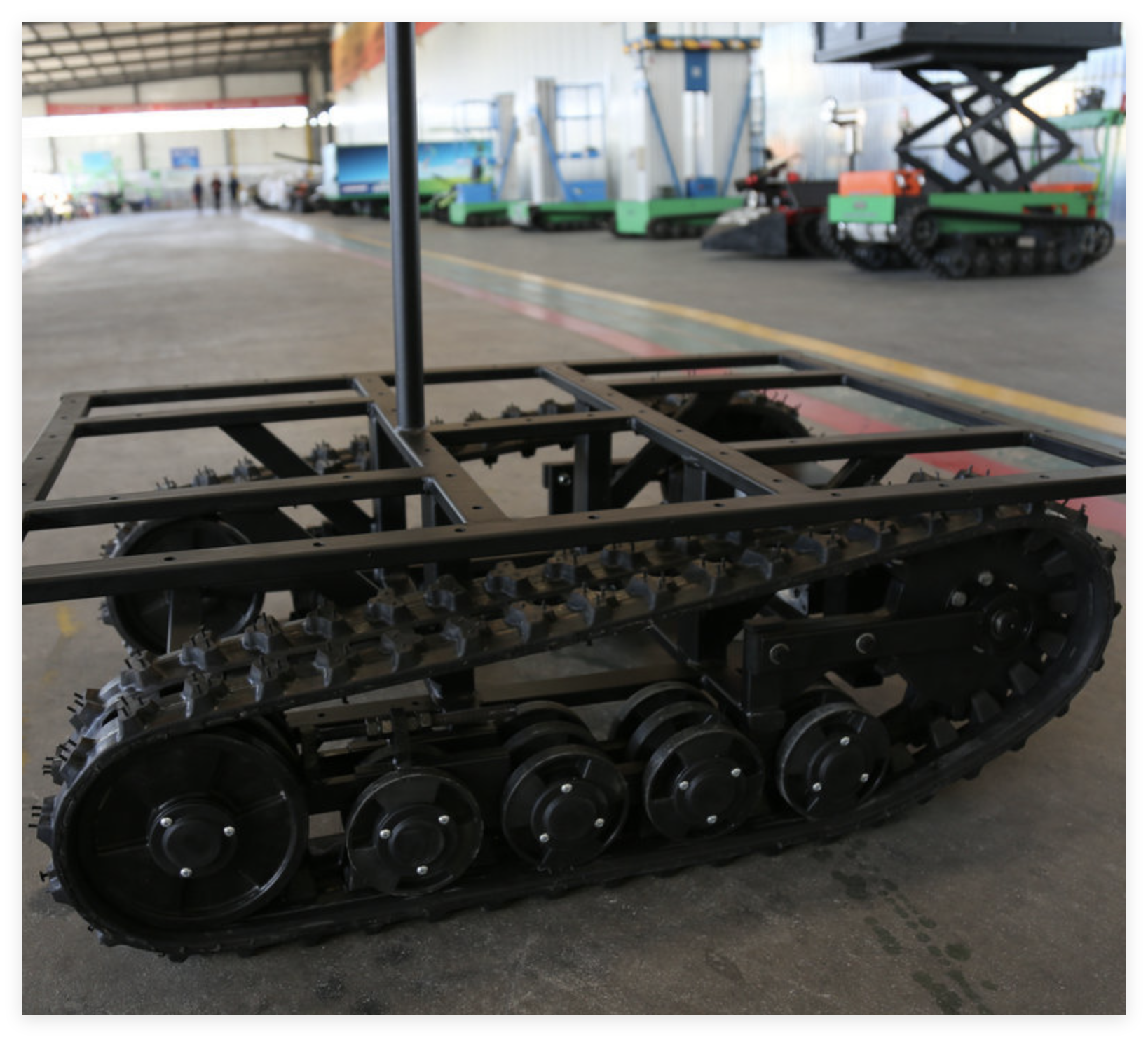

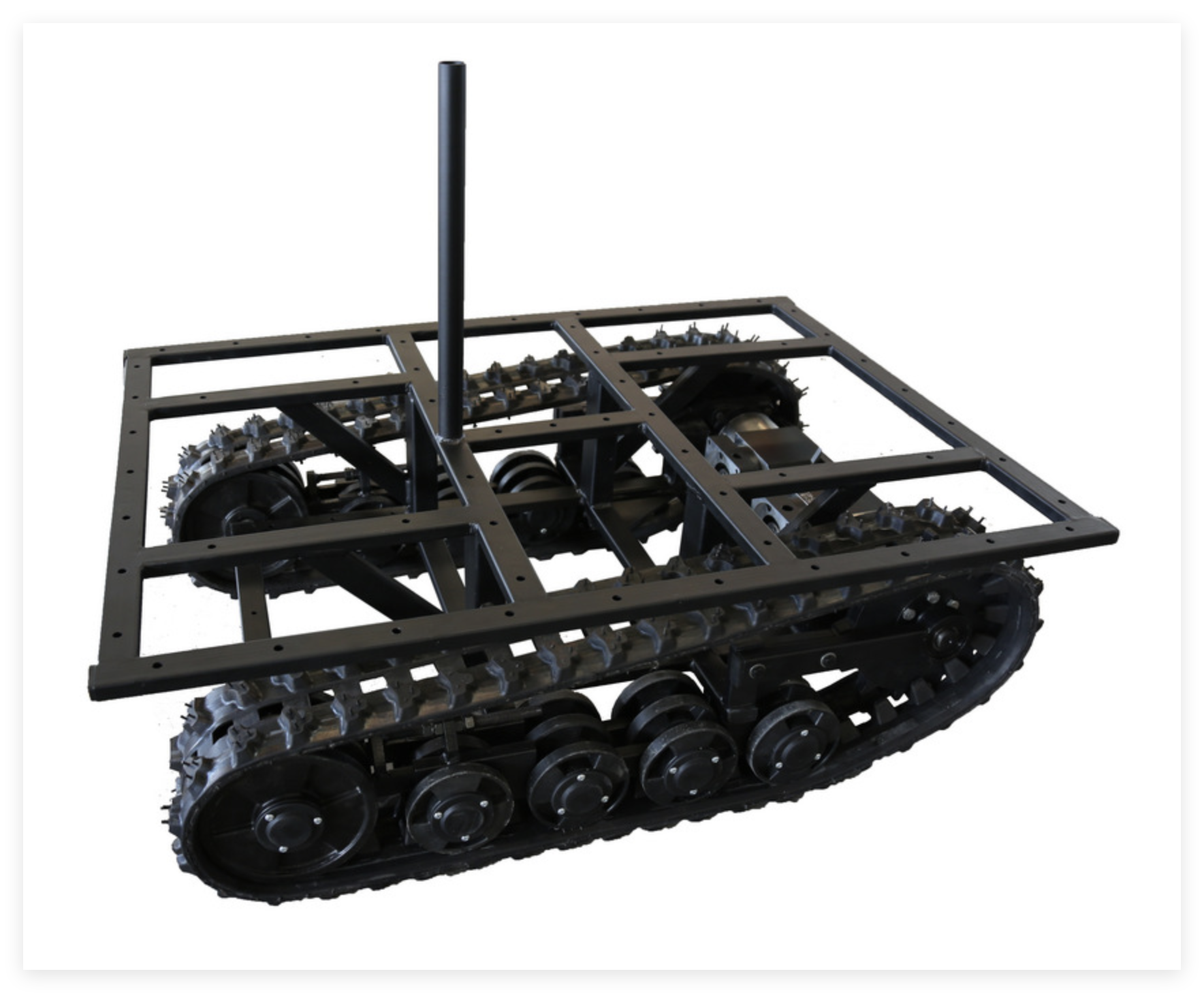

The surface is treated with plastic spraying, and the reasonable color combination and beautiful appearance design make the belly belt base more eye-catching. It is powerful and versatile with a chassis. It can be wirelessly remote-controlled, with simple operation and flexible turning. In an open and interference-free environment, the remote control distance can reach 1 kilometer. The track chassis is equipped with a 2KW electronic control system, providing more power
It is strong and equipped with a 48V40AH lithium battery, providing longer battery life.
| Part of Customized size rubber track undercarriage chassis platform | ||||||
| Model | Length | Width | Height | Rubber Track Width | Weight (kgs) | Load bearing Weight(kgs) |
| KCM-40 | 540mm | 545mm | 150mm | 40mm | 26.5kg | 50 |
| KCM-50 | 810mm | 377mm | 165mm | DG50mm | 50kg | 100 |
| KCM-76 | 940mm | 550mm | 210mm | 60mm | 24.5kg | 150 |
| KCM-100 | 700mm | 520mm | 240mm | A100mm | 95kg | 100 |
| KCM-70 | 590mm | 530mm | 250mm | 70mm | 17.85kg | 100 |
| KCM-70 | 800mm | 570mm | 300mm | 70mm | 44kg | 150 |
| KCM-70 | 1010mm | 540mm | 410mm | 70mm | 106kg | 150 |
| KCM-100 | 640mm | 520mm | 260mm | A100mm | 46kg | 75 |
| KCM-100Z | 890mm | 600mm | 280mm | 100mm | 70kg | 200 |
| KCM-JZ100 | 980mm | 780mm | 330mm | 100mm | 100kg | 300 |
| KCM-150 | 970mm | 700-900mm | 290mm | 150mm | 100kg | 300 |
| KCM-JZ102 | 982mm | 782mm | 332mm | 102mm | 122kg | 260 |
| KCM-150D | 1250mm | 700-900mm | 33mm | 150mm | 100kg | 300 |
| KCM-ZD | 800mm | 600mm | 270mm | 100mm | 150kg | 200 |
| KCM-GS150 | 1000mm | 800mm | 390mm | 150mm | 150kg | 200 |
| KCM-150XT | 1000mm | 800mm | 450mm | 180mm | 100kg | 300 |
| KCM-180ZD | 1800mm | 1100mm | 450mm | 180mm | 190kg | 500 |
| Remark | All size are customized according to demand, please contact us confirm. | |||||
The surface is treated with plastic spraying, and the reasonable color combination and beautiful appearance design make the belly belt base more eye-catching. It is powerful and versatile with a chassis. It can be wirelessly remote-controlled, with simple operation and flexible turning. In an open and interference-free environment, the remote control distance can reach 1 kilometer. The track chassis is equipped with a 2KW electronic control system, providing more power
It is strong and equipped with a 48V40AH lithium battery, providing longer battery life.
| Part of Customized size rubber track undercarriage chassis platform | ||||||
| Model | Length | Width | Height | Rubber Track Width | Weight (kgs) | Load bearing Weight(kgs) |
| KCM-40 | 540mm | 545mm | 150mm | 40mm | 26.5kg | 50 |
| KCM-50 | 810mm | 377mm | 165mm | DG50mm | 50kg | 100 |
| KCM-76 | 940mm | 550mm | 210mm | 60mm | 24.5kg | 150 |
| KCM-100 | 700mm | 520mm | 240mm | A100mm | 95kg | 100 |
| KCM-70 | 590mm | 530mm | 250mm | 70mm | 17.85kg | 100 |
| KCM-70 | 800mm | 570mm | 300mm | 70mm | 44kg | 150 |
| KCM-70 | 1010mm | 540mm | 410mm | 70mm | 106kg | 150 |
| KCM-100 | 640mm | 520mm | 260mm | A100mm | 46kg | 75 |
| KCM-100Z | 890mm | 600mm | 280mm | 100mm | 70kg | 200 |
| KCM-JZ100 | 980mm | 780mm | 330mm | 100mm | 100kg | 300 |
| KCM-150 | 970mm | 700-900mm | 290mm | 150mm | 100kg | 300 |
| KCM-JZ102 | 982mm | 782mm | 332mm | 102mm | 122kg | 260 |
| KCM-150D | 1250mm | 700-900mm | 33mm | 150mm | 100kg | 300 |
| KCM-ZD | 800mm | 600mm | 270mm | 100mm | 150kg | 200 |
| KCM-GS150 | 1000mm | 800mm | 390mm | 150mm | 150kg | 200 |
| KCM-150XT | 1000mm | 800mm | 450mm | 180mm | 100kg | 300 |
| KCM-180ZD | 1800mm | 1100mm | 450mm | 180mm | 190kg | 500 |
| Remark | All size are customized according to demand, please contact us confirm. | |||||
