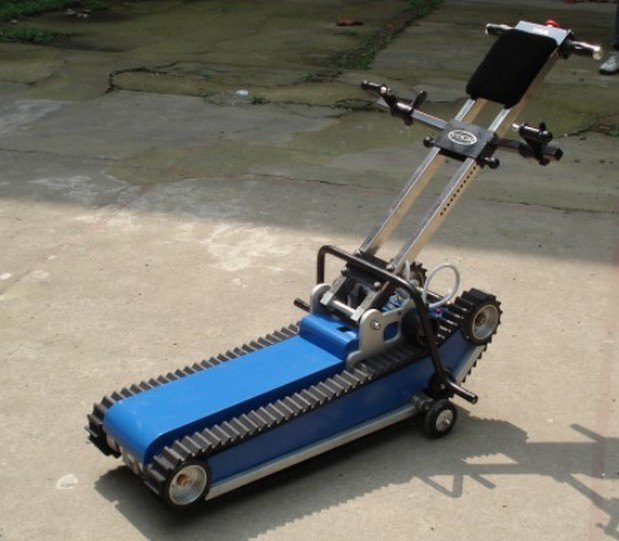

Wheelchair up Stair Climber

Rubber belts Wheelchair Upstairs Climber, is a means of delivery of a barrier-free facilities for the old and disabled person. It is used in some of the required up or down the stairs, where there is no elevator or other lifting facilities. The product's basic function is to carry the wheelchair and wheelchair occupant up and down the stairs, keep the elderly and the disabled people in a safe and comfortable condition, up and down the floor together with wheelchair.

Name	Data	Remark
Distance between Front center and rear wheel center(mm)	925
Formal Dimension(mm)	1080×430×300
Total Weight(kg)	65
Carrying Capacity(kg)	150
Speed(m/min)	7
MAX Climb Angle(°)	40
BatteryType	Lithium Battery
Battery Capacity(A.h)	17
Voltage(V)	48
Motor Type	Per Magnet DC
Motor Rated Power(W)	500
Handle Height(mm)	1200
Rubber Belt MAX Pull (N/mm)	90
Electrification Power Input(V)	AC220±10% 50Hz
Under Voltage protection (V)	≥50
Overcurrent protection(A)	<27
