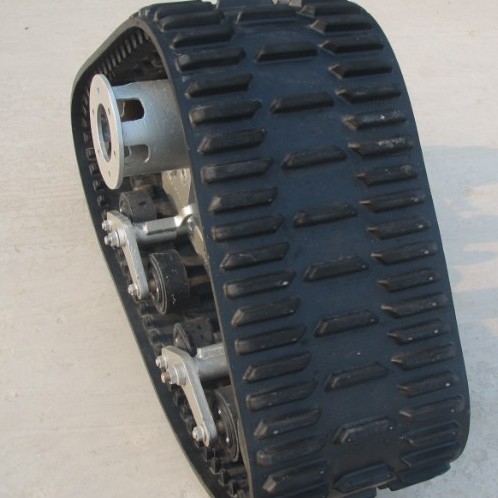

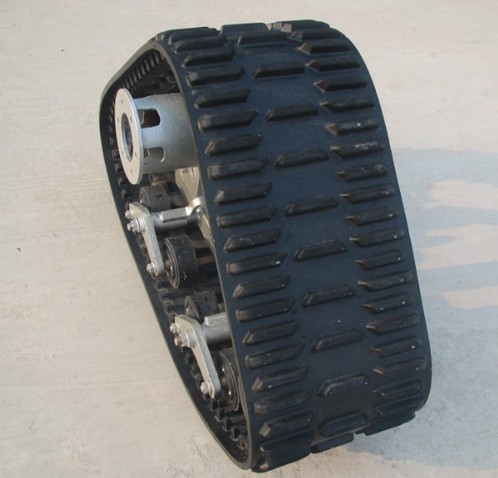

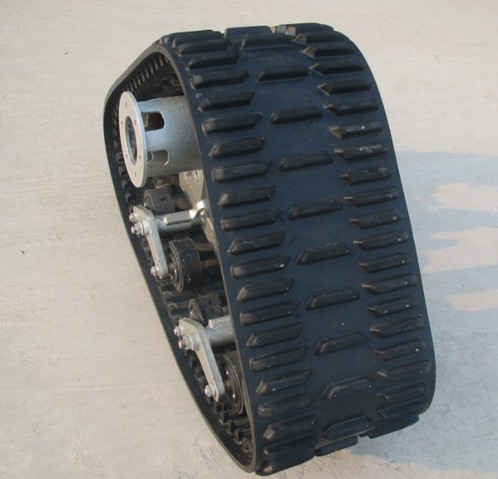

Snow Rubber Track Conversion System for SUV/Pickup/Offroad/ATV/UTV

The Rubber Track System/Track Kits are made of high-tech material,could be used on Wheelchair,Military field operation,Anti-terrorist,Patrol,Oil search etc.They could walk on all terrain and all unusual environment like Snow,Swamp,Desert,Gobi,Mountain and so on.They are easy and quick interchange with the tyre,no need change anything about the vehicle.

Specification:

Exclusive Anti-toque System-------------Anti-overturn system
Frame Construction---------------------- Steel
Assembly Weight------------------------120kg/PCS
Spec(L, W, H)---------------------------1290mmX400mmX797.5mm
Type of Vehicle------------------------Heavy Duty 4X4Vehicles, Off road, Pick up and etc.
Recommended Max. Gross Wt. -------------4500kgs
Internal Suspension-------------Ft. -Concentric Pivot W/Independent Offset Rocker Arm(for easy steering)
Track Width---------------------------400mm
Ground Clearance-----------------------640mm
Track Style----------------------------All-Terrain Self-Cleaning
Track material-------------------------Rubber with Internal Composite Rods/Cord
Recommended Operating Temperature--------(-40º C to +55º C)
Driving Wheel and Roller material--------UHMW-PE
Paint-------------------------------------Silver-standard. Other clour-"optional"
PERFORMANCE
Recommended Max. Speed----------------------60km/h
Terrain-------------------------------------All Terrain Including Hard Surface
Maximum Distance Off Road------------------Indefinite
Side Slope Capacity------------------------68%

We have wide range size of rubber track system, please kindly write us email for details. Any of your inquiry is always welcome.
