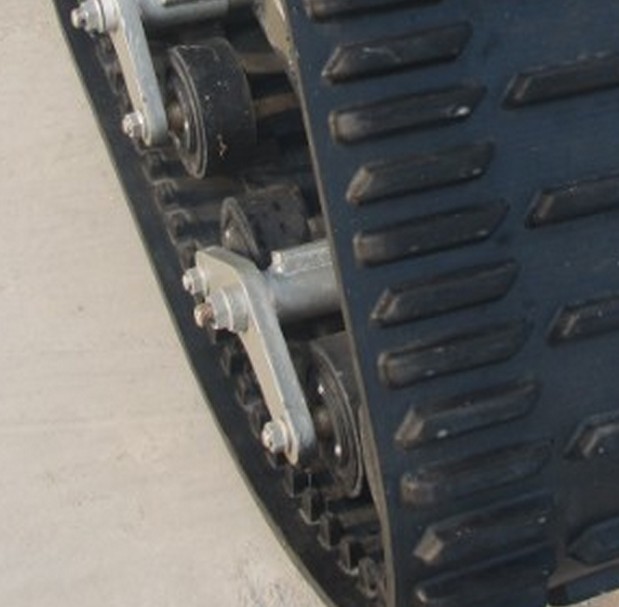

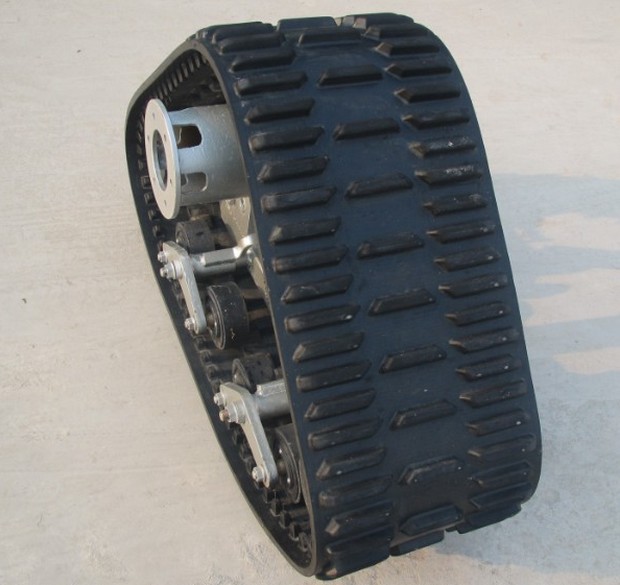

Rubber Track System KCM-LE400

Product Description

SPECIFICATIONS

Exclusive Anti-toque System-----------------------Anti-overturn system

Frame Construction-------------------------------- Steel

Assembly Weight--------------------------------------120kg/PCS

Spec(L, W, H)--------------------------------------1290mmX400mmX797.5mm

Type of Vehicle---------------------------------------Heavy Duty 4X4Vehicles, Off road, Pick up and etc.

Recommended Max. Gross Wt. --------------------4500kgs

Internal Suspension--------------------------Ft. -Concentric Pivot W/Independent Offset Rocker Arm(for easy steering)

Track Width------------------------------------------400mm

Ground Clearance------------------------------------------640mm

Track Style-------------------------------------------All-Terrain Self-Cleaning

Track material----------------------------------------Rubber with Internal Composite Rods/Cord

Recommended Operating Temperature-----------(-40º C to +55º C)

Driving Wheel and Roller material-------------------------------------UHMW-PE

Paint----------------------------------------------------Silver-standard. Other clour-"optional"

PERFORMANCE

Recommended Max. Speed----------------------60km/h

Terrain----------------------------------------------All Terrain Including Hard Surface

Maximum Distance Off Road------------------Indefinite

Side Slope Capacity------------------------------68%

For other specification, please kindly feel free to contact us.
